Ua tsaug rau nws cov khoom zoo heev thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm cov ua haujlwm pu pre-insulated ducting vaj huam sib luag manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws thiab xa khoom sai rau koj.
↵

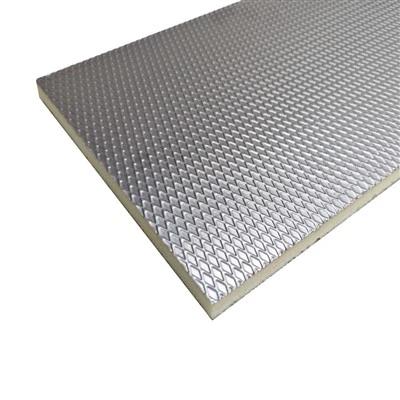

Polyurethane (PU) Ua Npuas Ncauj Ua Ntej -Insulated HVAC Ductwork Vaj Huam Sib Luag
A PU Pre- insulated Ducting Vaj Huam Sib Luagyog ib qho niaj hnub, qhaub cij-hom vaj huam sib luag siv los tsim cov cua sov, qhov cua, thiab cua txias (HVAC) ductwork. Nws muaj qhov nrujPolyurethane (PU) ua npuas ncauj corebonded ntawm ob txheej ntawm cov khoom tiv thaiv, feem ntau yog txhuas ntawv ci.
Nws cov txiaj ntsig tseem ceeb tshaj li cov ntawv hlau ducts yog superior thermal efficiency, sib zog dua, thiab kev txhim kho sai dua.
Core Composition
Lub vaj huam sib luag kev ua tau zoo yog txhais los ntawm nws peb txheej:
Insulating Core (PU):Cov tub ntxhais yog ua los ntawm nruj polyurethane (PU) ua npuas ncauj. PU Ua Npuas Ncauj muaj kev ua haujlwm zoo dua thermal. Cov tub ntxhais no muab qhov tshwj xeeb thermal rwb thaiv tsev nrog thermal conductivity (λ-tus nqi) 0.020W/m·K.
Inner thiab Outer Facings:Cov tub ntxhais yog laminated nrog cov ntsej muag uas muab lub zog, lub ntsej muag du rau airflow, thiab kev tiv thaiv. Tus qauv xaiv yogaluminium ntawv ci(feem ntau yog 60 lossis 80 microns rau sab hauv, lossis txog li 200 microns kom zoo dua qub). Rau cov ntawv thov sab nraud lossis xav tau ntau dua,galvanized lossis pre-painted steelcov ntawv yog siv.
Sandwich Structure:Cov qauv sib xyaw no muab lub vaj huam sib luag nws cov rigidity thiab txhua yam muaj zog, tso cai rau nws yuav tsum tau fabricated rau hauv ducts ntawm ntau yam duab.
Loj:3950 * 1200 * 20mm
Ua npuas ncauj ntom ntom:48kg/m3
Aluminium Thickness:0.06mm los yog 0.08mm
Aluminium Xim:Nyiaj los yog Dub
Thermal conductivity:0.020w/m.k
Ntim:10 daim / pob
Loading peev:710 nplooj / 40'HQ (packed nrog hnab yas)
660 daim / 40'HQ (packed nrog cardboard lub thawv)
Cov yam ntxwv tseem ceeb thiab txiaj ntsig ntawm PU Pre- insulated Ducting Panel
| Feature | Tau txais txiaj ntsig |
|---|---|
| Zog Efficiency | Tsawg thermal conductivity txo qis zog poob, txo HVAC cov nqi ua haujlwm. |
| Lub teeb | Qhov hnyav tsawg dua li cov ntawv hlau ducts (piv txwv li, ~ 1.4 kg / m² vs ~ 8.3 kg / m²), txo cov khoom siv hauv tsev. |
| Hluav taws kub Retardant | High - cov vaj huam sib luag zoo siv hluav taws kub - PU / PIR ua npuas ncauj thiab ua tau raws li cov qauv thoob ntiaj teb xws li BS 476 Chav Kawm 0 lossis EN 13501-1. |
| Acoustic rwb thaiv tsev | Cov tub ntxhais ua npuas ncauj dampens suab nrov ntawm airflow thiab cov khoom siv, tsim kom muaj qhov chaw nyob sab hauv tsev. |
| Hygienic & Pwm Resistant | Cov ntawv uas tsis yog - ntxeem tau cov ntawv ci tiv thaiv cov plua plav thiab dej noo, tiv thaiv pwm kev loj hlob thiab ua kom muaj huab cua huv. |
| Kev txhim kho ceev | Cov vaj huam sib luag raug txiav, folded, thiab koom nrog hauv - qhov chaw siv cov cuab yeej yooj yim, ua kom lub sij hawm luv luv. |
Cov txheej txheem tseem ceeb ntawm PU Pre- insulated Ducting Vaj Huam Sib Luag
1. Raw Material Mixing
2. Aluminium Ntawv Nyiaj Embossing
3. PU Foam Txhaj
4. foaming & Laminating
5. Ua ntej-Insulated duct Txiav
6. duct vaj huam sib luag Auto- stacking
7. Ntim ntawm Pre-insulated Duct
8. Kev ntim cov khoom ua ntej-insulated duct
Applications thiab Installation
Cov panels no tau siv dav hauvtsev nyob, coj mus muag, thiab industrial HVAC systemsrau cua txias, qhov cua, thiab cua sov.
Cov txheej txheem installation muaj xws li:
Tracing thiab txiav:Panels tau qhab nia thiab txiav kom loj.
Grooving thiab Folding:A "V" zawj raug txiav kom tso cai rau lub vaj huam sib luag kom muab tais rau hauv cov kav dej.
Joining thiab sealing:Cov ntu tau koom nrog siv cov flanges tshwj xeeb, cov nplaum, thiab cov kab xev txhuas kom ntseeg tau tias muaj lub foob foob.
Kev txhawb zog:Nyob ntawm cov kav dej loj, ntxiv aluminium lossis steel profiles ntxiv rau kev txhawb nqa.
