Ua tsaug rau nws cov khoom zoo heev thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm cov ua haujlwm pu pre-insulated ducting board manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws rau koj thiab xa khoom sai.

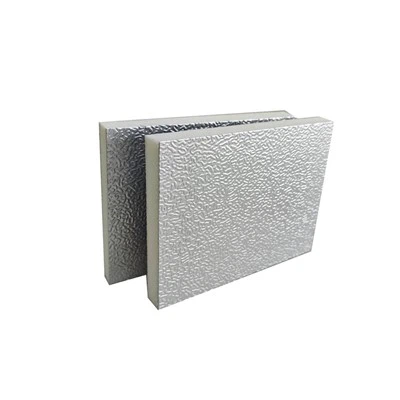

PU ua ntej- insulated Ducting Board
Puas yog koj tab tom nrhiav rau HVAC cua duct system uas yogsib dua, muaj zog dua -nrawm, thiab sai dua rau nruabdua li daim ntawv hlau ducts? Cia peb qhia koj txog qhovPU (Polyurethane) ua ntej- insulated ducting board– ib tiam tom ntej - kev daws teeb meem rau huab cua tis.
PU Ducting Board yog dab tsi?
Nws yog ib qho nyuaj, qhaub cij -hom vaj huam sib luag. Lub hauv paus yog ua los ntawm siab - ntomPolyurethane (PU) ua npuas ncauj, uas yog txuas mus tas li ntawm ob txheej ntawm cov ntaub ntawv muaj zog aluminium (los yog lwm yam ntsej muag). Qhov no tsim ib zaug xwb, tag nrho -hauv- ib yam khoom uas ua raws li ob qho tib si huab cua channel thiab thermal rwb thaiv tsev.
Qauv:Nyiaj Aluminium / PU Ua Npuas Ncauj / Nyiaj Txhuas
Loj:4000 * 1200 * 20mm
Ua npuas ncauj ntom ntom:50kg / m3
Aluminium Thickness:0.06mm los yog 0.08mm
Aluminium Xim:Nyiaj
Ntim:10 daim / pob
Loading peev:710 nplooj / 40'HQ (packed nrog hnab yas)
660 nplooj / 40'HQ (packed nrog cardboard thawv)
Vim li cas thiaj xaiv PU Ducting Board hla cov kav dej qub?
| Feature | Ib txwm Sheet hlau + qhwv | PU Pre-Insulated Board |
|---|---|---|
| Thermal Performance | Nruab nrab (nrog rau thermal bridging) | Zoo heev - nruam rwb thaiv tsev, tsis muaj txuas hniav |
| Qhov hnyav | Hnyav | Txog li 80% sib dua |
| Lub Sijhawm Txhim Kho | Slow (txiav, koom, kaw, qhwv) | Fast (txiav, quav, kua nplaum - 4x sai) |
| Cua Leakage | Kev pheej hmoo siab ntawm cov pob qij txha | Tsawg heev (cov pob qij txha kaw) |
| Corrosion Risk | Yog (xeb nyob rau hauv cov av noo) | Tsis yog (tag nrho cov ntaub ntawv yog corrosion- pov thawj) |
| Condensation | Feem ntau yog tias rwb thaiv tsev tsis ua haujlwm | Zoo tshem tawm |
Cov txiaj ntsig tseem ceeb rau koj qhov project
1. Superior Energy Efficiency
PU ua npuas ncauj muaj ib qho ntawm cov thermal conductivity qis tshaj (≈0.020 W / m·K). Qhov no txhais tau tiasTsawg kub nce / poob, txo qis cua txias / cua sov, thiab txo nqi hluav taws xob rau koj cov neeg siv khoom.
2. Huab cua huv & noj qab haus huv
Lub du, tsis yog - ntxeem tau ntawm aluminium sab hauv tiv thaiv plua plav, pwm, thiab kab mob loj hlob. Nws tsis tso cov fibers (tsis zoo li fiberglass duct boards) thiab yooj yim los ntxuav, txhawb nqaIAQ (Indoor Air Quality)kev xav tau rau tsev kho mob, tsev kawm ntawv, thiab chaw ua haujlwm.
3. Kev teeb tsa ceev & huv
Tsis siv lub tshuab hnyav lossis vuam yuav tsum tau ua.
Cov kav dej yog tsim los ntawm -site siv cov cuab yeej siv tes yooj yim.
Plua plav-dawb, suab nrov- txheej txheem dawb - zoo tagnrho rau cov haujlwm ua haujlwm rov qab hauv cov tsev nyob.
Txiav cov nqi zog ntau heev.
4. Lub teeb tab sis muaj zog
PU core muab kev ua haujlwm zoo heev. Cov kav dej yog nruj txaus los tiv thaiv kev tuav thiab huab cua siab (txog 1500 Pa lossis ntau dua), tab sis ib tus neeg tuaj yeem nqa tau tag nrho lub rooj tsavxwm yooj yim.
5. Kev ua haujlwm tua hluav taws
High- zoo PU boards yog tsim los nrog cov nplaim taws- cov qauv tsim retardant.

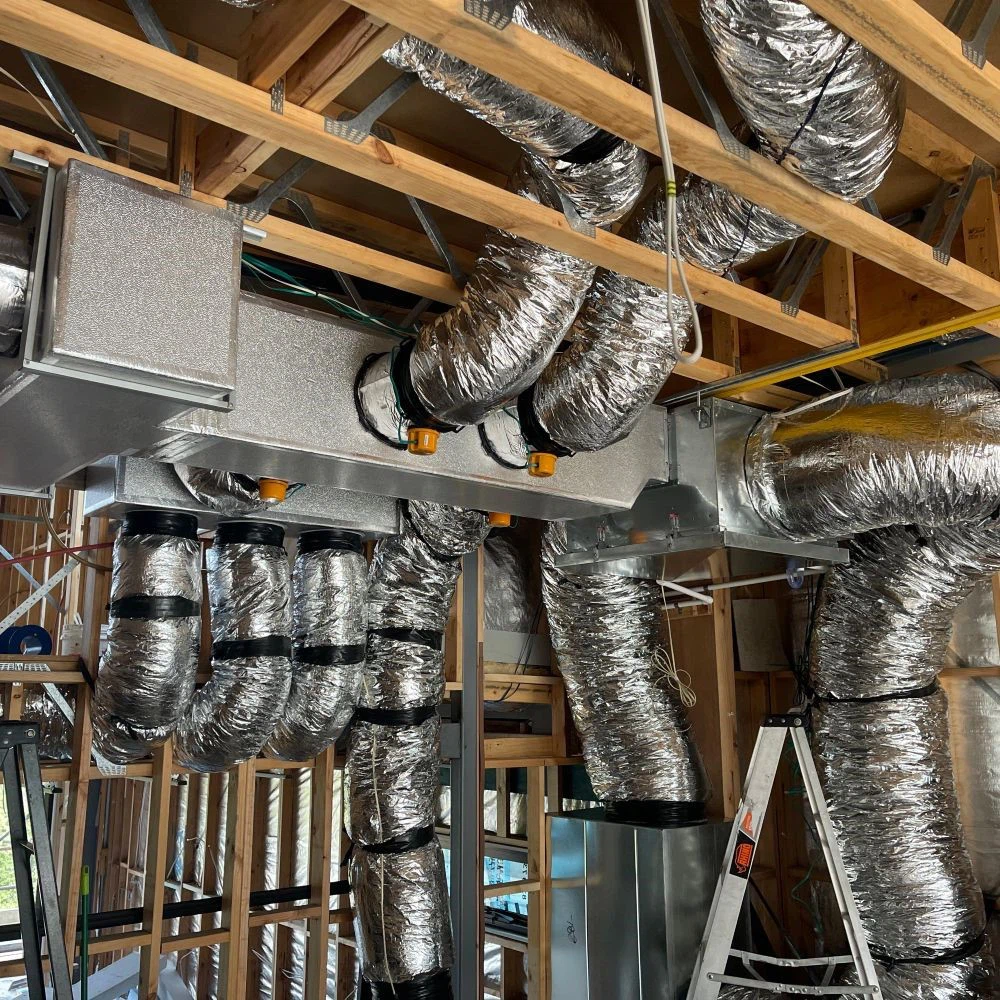

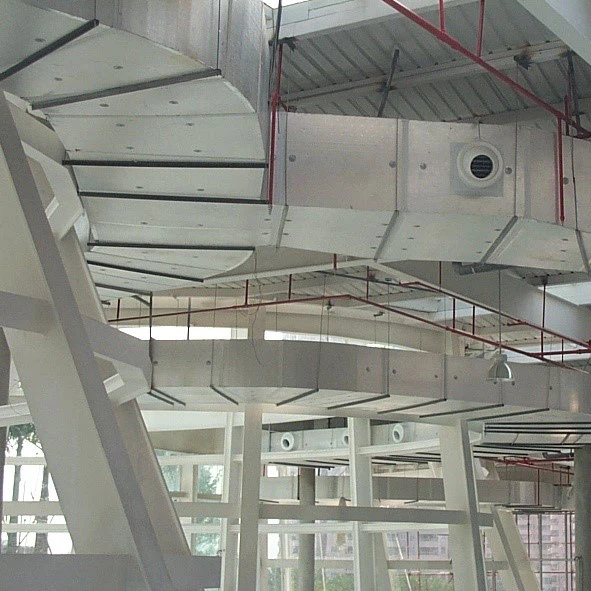

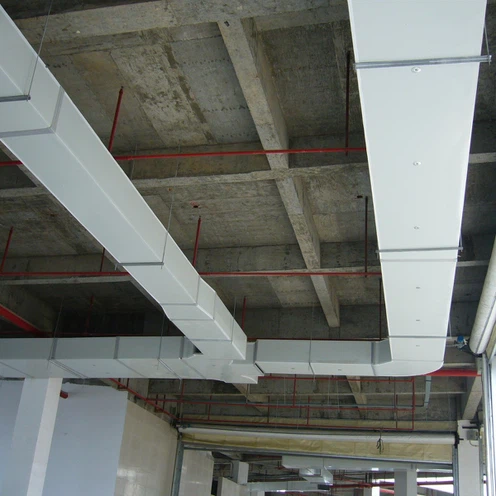

Qhov project Cases ntawm PU Pre-insulated Ducting Board
Yuav Ua Li Cas Ua Cov Cuab Yeej Cuab Yeej nrog PU Pre-insulated Ducting Board
Cov txheej txheem fabrication ntawm Pre-insulated Air Ducts
Cim npe nrov: pu pre- insulated ducting board, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized
