Ua tsaug rau nws cov khoom zoo heev thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm cov coj pid panels manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws thiab xa khoom sai rau koj.

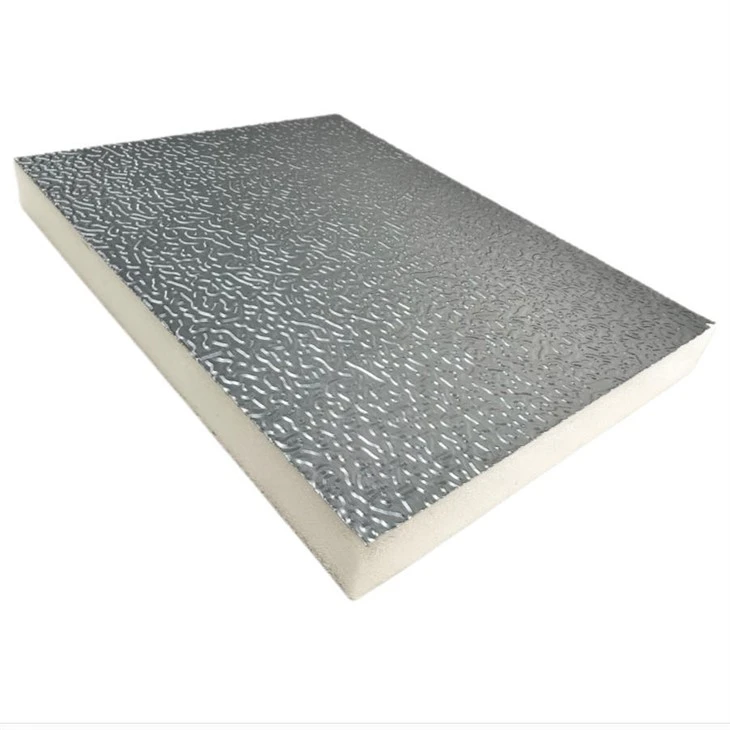

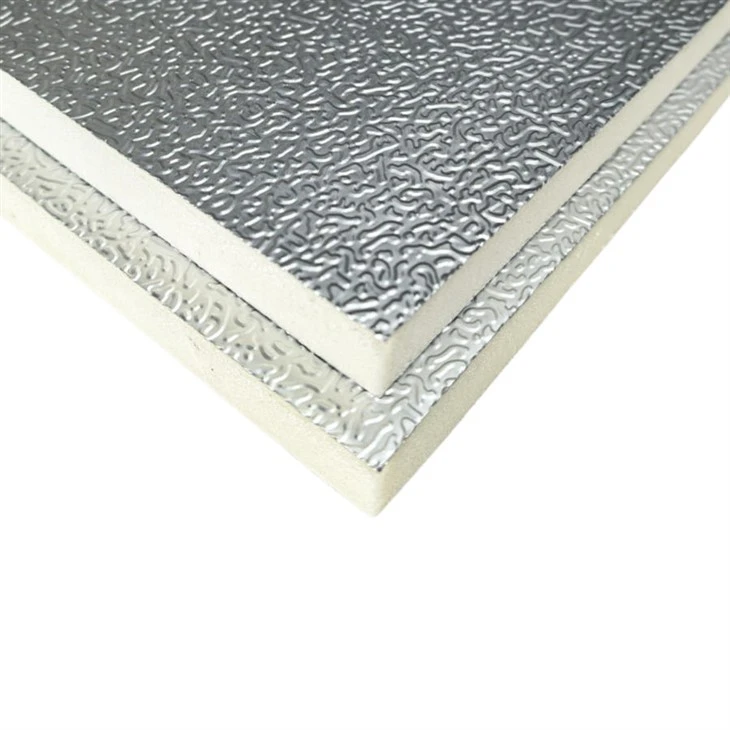

PU PID panels
PU PID Vaj Huam Sib Luag, hloov pauv PU aluminium foil duct vaj huam sib luag thiab PU sandwich duct vaj huam sib luag, yog siab - cov khoom siv tshwj xeeb tsim rau HVAC (Tsuas Kub, Qhov Cuab Yeej thiab Cua Txias) daim ntawv thov cua tshuab.
Cov khoom siv tau txais cov qauv trilaminar laminated muaj xws li:
Ob lub ntsej muag sab nrauv: High-tensile aluminium ntawv ci, nkag rau hauv cov qauv dawb lossis embossed
Internal core substrate: Rigid polyurethane (PU) ua npuas ncauj, ua haujlwm raws li cov txheej txheem thaub qab thiab thermal insulating nruab nrab
Core Performance ntawmPU PID panels
01.
Super muaj zog thermal rwb thaiv tsev thiab kev txuag hluav taws xob ua haujlwm
Nrog polyurethane (PU) ua cov khoom siv tseem ceeb, nws cov thermal conductivity tsawg dua los yog sib npaug li 0.022W / (m · K), uas yog qhov zoo tshaj rau cov khoom siv ib txwm muaj xws li pob zeb wool (Ntau dua lossis sib npaug rau 0.040W / (m · K)) thiab EPS (Ntau dua lossis sib npaug rau 0.033W / (m · K)).
Cov khoom siv tseem ceeb muaj qhov kaw- ntawm tes ntawm ntau dua 95%, tiv thaiv huab cua convection thiab thermal conduction. Nws muaj kev ruaj ntseg rwb thaiv tsev kev ua tau zoo nyob rau hauv ib puag ncig xws li ntawm -40℃mus rau 80 degree, ua rau nws tsim nyog rau cov xwm txheej tsis zoo xws li qis- qhov kub thiab txias cia thiab cov chaw ua haujlwm kub. cov
02.
Txhim khu kev tiv thaiv hluav taws
Cov khoom siv tseem ceeb tau ntxiv nrog cov nplaim hluav taws kub zoo ib puag ncig thiab tau dhau qhov kev xeem B1 qib ntawm GB 8624-2012 "Kev faib tawm rau Kev Ua Haujlwm Hluav Taws Xob ntawm Cov Khoom Siv Hauv Tsev thiab Cov Khoom". Thaum raug hluav taws kub, nws tsuas yog carbonizes rau saum npoo yam tsis muaj molten droplets.
Cov pa luam yeeb toxicity qib nce mus txog "ZA1" (qhov qis tshaj plaws toxicity), ua tau raws li kev tiv thaiv hluav taws ntawm cov nroj tsuag, cov vaj tse, thiab lwm yam.
03.
Los tiv thaiv- kev laus thiab lub zog muaj zog
Cov txheej txheej saum npoo tuaj yeem raug xaiv los ntawm cov xim hlau phaj, aluminium ntawv ci, iav fiber ntau daim ntaub, thiab lwm yam. Nws tiv taus acid thiab alkali, ultraviolet aging, thiab tuaj yeem tiv taus nag yaig thiab kub sib txawv deformation thaum siv sab nraum zoov.
Cov qauv tsim qauv ua rau cov ntawv muaj lub zog dabtsi yog khoov ntawm ntau dua lossis sib npaug ntawm 15MPa thiab lub zog compressive ntau dua lossis sib npaug li 20MPa, tso cai rau nws siv ncaj qha los ua daim ntawv rau cov qauv thaiv thiab txo qhov xav tau ntawm cov khoom txhawb nqa ntxiv. cov
Yuav Ua Li Cas Ncaj Ncaj Nrog PU PID Panels
-
Cov cuab yeej:Ua ntej-Cov Khoom Siv Hluav Taws Xob Hluav Taws Xob, suav nrog V cutter.
-
Txoj kev:Boards tau qhab nia, folded, thiab sib sau ua ke rau hauv daim duab plaub; pob qij txha kaw nrog siab-sensitive aluminium foil daim kab xev los yog dej-raws li acrylic nplaum.
-
Kev them nyiaj yug:Thaum nruj txaus rau qis-rau- nruab nrab zoo li qub siab (feem ntau Tsawg dua lossis sib npaug rau 1500 Pa, lossis 6″ wg), cov kav dej yuav tsum muaj kev txhawb nqa dai kom zoo raws li cov txheej txheem tsim khoom.
