Name: Polyurethane PID Vaj Huam Sib Luag Chaw muag khoom thiab chaw tsim khoom - Tuam Tshoj Hoobkas - UNT Duct
Brand: UNTDuct
SKU: 305472774

Ua tsaug rau nws cov khoom zoo thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm polyurethane pid vaj huam sib luag manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws rau koj thiab xa khoom sai.

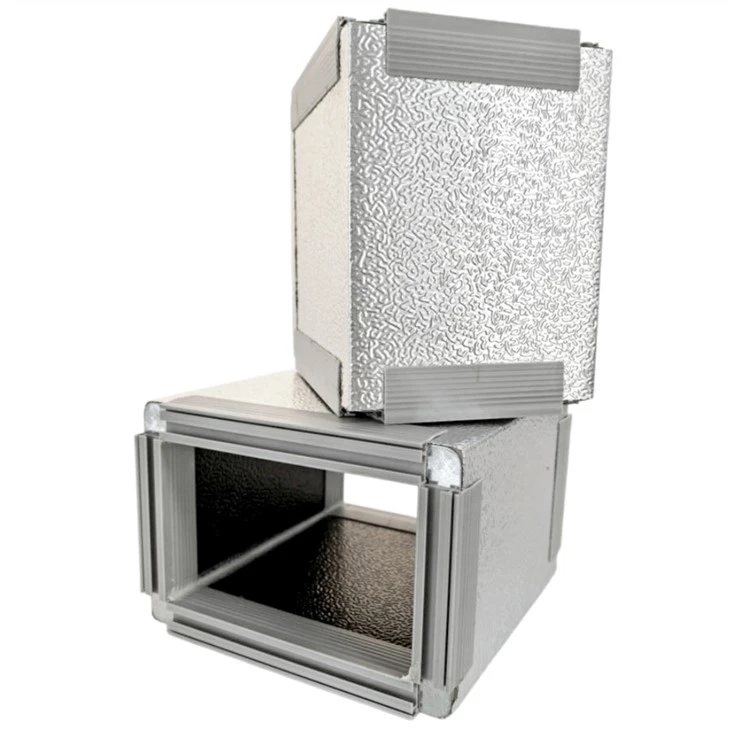

Polyurethane PID vaj huam sib luag

Ua los ntawm polyurethane ua npuas ncauj core nrog ob -sab txhuas ntawv ci los yog txhuas ntawv ntsib, no eco- phooj ywg Polyurethane PID Vaj Huam Sib Luag muab lub zog zoo heev -txuag cov teebmeem thiab tau siv dav hauv ntau yam HVAC duct systems.

Piv nrog cov pa galvanized steel ducts, peb ua ntej -insulated HVAC ducts feature superior kev ua tau zoo, lub teeb yuag qauv thiab siab rigidity.

Lawv txais yuav ib qho yooj yim - kauj ruam kev teeb tsa los txhawb kev tsim kho kom zoo, thiab tau txais txiaj ntsig thoob ntiaj teb. Yuav kom ua tau raws li qhov xav tau ntawm ntau qhov project, lub vaj huam sib luag nto muaj nyob rau hauv ntau txoj kev xaiv: 60/80μm txhuas ntawv ci, 150μm txhuas ntawv thiab ua ntej- pleev xim rau galvanized steel ntawv.

Vaj Huam Sib Luag Structure: Silver Alu. / PU Ua Npuas Ncauj / Nyiaj Alu. Daim ntawv
Ua npuas ncauj ntom: 48kg / M3
Vaj Huam Sib Luag Loj: 3950mm * 1200mm * 20mm
Alu. Ntawv nyiaj: 60 Micron (Embossed)

Vim li cas xaivPolyurethane PID vaj huam sib luag?

1. Zog zoo heev - txuag rwb thaiv tsev

Txais patented dej foaming PU core, nws nta ultra- thermal conductivity ntawm 0.020 W / (m·K). 20mm vaj huam sib luag sib npaug ntawm cov khoom siv hluav taws xob ntawm 30mm cov khoom siv roj hmab. Nrog tshaj 95% kaw cell qauv, nws tiv taus ya raws thiab condensation, stably ua hauj lwm nyob rau hauv -40℃mus rau 80℃. Nws txo qis HVAC lub zog poob thiab txuag 20% -30% cov nqi khiav haujlwm mus sij hawm ntev.

2. High Airtightness & Sanitary Performance

Nws ua tau raws li European Class C airtightness tus qauv EN 13403, ua kom tsis muaj cua nkag hauv qab ± 2000Pa siab. Optimized sib koom ua ke zoo heev txo cov huab cua to. Smooth antibacterial aluminium foil nto tiv thaiv plua plav thiab pwm kev loj hlob, yooj yim los ntxuav thiab tswj. Tus kheej- hom kev ntxuav coated muaj nyob rau hauv tsev kho mob, chaw tsim khoom noj khoom haus thiab chaw ua haujlwm tshuaj.

3. Siab zog & Ultra-Lub neej ua haujlwm ntev

Muaj qhov ruaj khov khoov thiab compression lub zog, lub vaj huam sib luag nta zoo heev corrosion kuj thiab seismic kuj. Kev kho deg sib txawv hloov mus rau ntau yam kev ua haujlwm hnyav. Tsis muaj xeb thiab kev laus teeb meem ntawm galvanized steel ducts, nws xav tau kev saib xyuas me ntsis thiab tuaj yeem ua haujlwm ntev txog 20 xyoo.

4. Kev teeb tsa sai & Kev hloov kho tau zoo

Lub teeb dua li cov kav hlau ib txwm muaj, nws txo qis lub tsev thauj khoom thiab ua kom lub sijhawm tsim kho luv luv los ntawm 40%-60%. Nws txhawb lub Hoobkas prefabrication thiab hloov tau yooj yim ntawm qhov chaw sib dhos, muaj nyob rau hauv ntau yam duab thiab specifications. Nws haum qhov chaw nqaim qab nthab, kev tsim kho tshiab thiab kho dua tshiab xws li cov chaw zov me nyuam cov ntaub ntawv.

5. Cov khoom siv ntsuab & kev ruaj ntseg hluav taws kub

Kev siv ozone- dej phooj ywg-raws li foaming mis nrog xoom ODP thiab GWP, nws ua raws li EU RoHS thiab cov qauv hauv tsev ntsuab. Nws ncav cuag EN 13501-1 Qib B hluav taws kub nrog cov pa luam yeeb tsawg thiab tsis muaj tshuaj lom, ua kom muaj kev nyab xeeb siab rau cov cua hauv tsev.

6. Superior Comprehensive Economic Benefits

Txawm hais tias me ntsis siab dua ntawm tus nqi pib, cov khoom lag luam muaj lub neej ua haujlwm ntev, kev siv hluav taws xob tsawg thiab yuav luag tsis muaj nqi tu, ua rau muaj txiaj ntsig zoo ntawm kev nqis peev. Nws lub teeb yuag tseem txuag cov nqi thauj khoom thiab kev tsim kho, zoo tagnrho rau kev lag luam thiab kev lag luam HVAC cov haujlwm.

F A Q

1. Muaj Xim

Cov xim classic xws li nyiaj, grey thiab dub yog nkag tau. Cov xim kev cai tuaj yeem hloov kho raws li kev thov nrog koj cov lej Pantone teev.

2. Kev xaiv ntim khoom

Kev cai luam ntawv xim thawv nrog cov neeg siv phau ntawv thiab cov ntawv ntxig sab hauv tau txais kev txhawb nqa. Txheem dawb / xim av cartons thiab qe crate ntim kuj muab raws li kev xaiv.

3. Kev Pabcuam Customization

Peb muab tag nrho OEM & ODM kev txhawb nqa. Cov pwm tshiab tuaj yeem tsim raws li koj cov duab kos duab 3D, nrog rau kev cai logo luam ntawv, xim txuam thiab ntim cov kev daws teeb meem.
