Polyurethane HVAC Cov kav dej

Ua tsaug rau nws cov khoom zoo thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm polyurethane hvac ductwork tuam ntxhab thiab cov muag khoom hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws thiab xa khoom sai rau koj.

Polyurethane HVAC Cov kav dej



Polyurethane HVAC Cov kav dej

Nws yog ib qho khoom ua tau zoo - qhov ua tau zoo ntawm qhov cua tshuab, uas yog siv dav hauv HVAC systems. Hauv qab no yog cov lus qhia ntxaws:

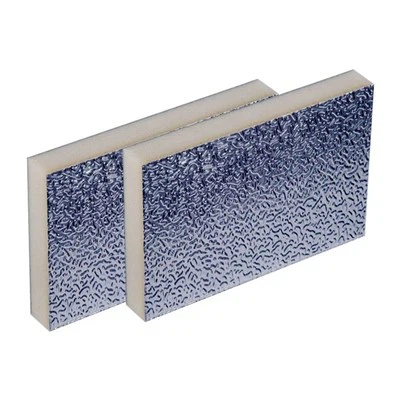

Tus qauv tsim: Nws yog ib qho nyuaj vaj huam sib luag. Cov tub ntxhais yog Polyurethane (PU) ua npuas ncauj, uas yog kaw-cov khoom siv cell insulating. Ob txheej txheej txheej yog aluminium ntawv lossis aluminium foils.



Vaj Huam Sib Luag Structure: Silver Alu. Ntawv Nyiaj / PU Ua Npuas Ncauj / Nyiaj Alu. Ntawv nyiaj
Ua npuas ncauj ntom: 50kg / CBM
Vaj Huam Sib Luag Loj: 3950mm * 1200mm * 20mm
Alu. Ntawv nyiaj: 60 lossis 80 Micron (Embossed)
Kev ntsuas hluav taws kub: Chav 0 (BS476Part 6 & 7)

1. Raw Material Mixing

2. Aluminium Ntawv Nyiaj Embossing

3. PU/pIR Foam Txhaj

4. foaming & Laminating

5. Ua ntej-insulated duct Txiav

6. duct vaj huam sib luag Auto- stacking

7. Ntim ntawm Pre-insulated Duct

8. Kev ntim cov khoom ua ntej-insulated duct

Qhov zoo tshaj plaws thermal rwb thaiv tsev thiab kev txuag hluav taws xob ua haujlwm:Lub thermal conductivity ntawm polyurethane rigid ua npuas ncauj yog tsawg li 0.018-0.022 W / (m · K), deb tshaj rau cov ntaub ntawv ib txwm siv xws li pob zeb ntaub plaub thiab iav ntaub plaub, uas yuav txo tau lub zog poob ntawm txias thiab kub xov xwm nyob rau hauv cov huab cua duct mus rau qhov loj tshaj plaws.



Muaj zog sealing thiab ya raws - pov thawj kev ua tau zoo:Cov pob qij txha ntawm cov pa ducts yog tsim los nrog tshwj xeeb sealant thiab clips, muab kev sib khi zoo heev. Qhov no tuaj yeem tiv thaiv kom tsis txhob muaj cua nkag (nrog rau qhov tso pa tawm tsawg dua 3%) thiab zam kev poob qis hauv kev ua haujlwm tau zoo los ntawm huab cua tsis txaus.



Suab rwb thaiv tsev thiab suab nrov txo cov yam ntxwv:Polyurethane txhav ua npuas ncauj muaj lub suab zoo heev thiab kev co txo ​​cov teebmeem. Nws tuaj yeem nqus cov suab nrov ntawm cov pa cua thiab cov khoom siv vibration suab nrov tsim tawm thaum lub sijhawm ua haujlwm ntawm lub tshuab cua txias, nrog lub suab nrov txo mus txog 10-15dB (A), tsim kom muaj qhov chaw nyob ntsiag to thiab xis nyob hauv tsev. Nws yog qhov tshwj xeeb tshaj yog rau cov chaw muaj suab nrov xws li tsev kho mob, cov tsev ua haujlwm, thiab tsev so.

Lub teeb yuag thiab siab - lub zog muaj zog:Qhov ntom ntawm polyurethane cua ducts tsuas yog 45-50 kg / m³, uas yog sib zog dua li kev sib xyaw ua ke ntawm cov hlau ntawv cua ducts thiab cov txheej rwb thaiv tsev, thiab tuaj yeem txo cov load-cov kabmob siab ntawm cov tsev. Nyob rau tib lub sijhawm, txheej txheej saum npoo yog ua los ntawm siab- muaj zog tiv thaiv cov ntaub ntawv xws li txhuas ntawv ci thiab FRP, nrog lub zog compressive ntau dua lossis sib npaug li 250 kPa, cuam tshuam-resistant, tsis yooj yim rau deform, muaj peev xwm tiv taus lub cua ntws siab ntawm lub qhov cua (ua haujlwm siab txog ± 2500 Pa), thiab muaj kev pab cuam lub neej 250 xyoo.



Modular installation tsim:Cov cua ducts yog tsim los ntawm cov qauv tsim qauv. Qhov ntev thiab txoj kab uas hla tuaj yeem kho raws li qhov yuav tsum tau ua. Cov pob qij txha yog txuas los ntawm qhov hom lossis hom flange. Tsis muaj cov cuab yeej nyuaj uas yuav tsum tau ua rau kev teeb tsa, thiab kev tsim kho kev ua haujlwm yog ntau dua 40% siab dua li ntawm cov kav dej ib txwm muaj.



Corrosion resistance thiab environmental friendliness:Polyurethane cov ntaub ntawv muaj cov tshuaj muaj zog ruaj khov, tiv taus cov kua qaub thiab alkalis, thiab muaj kev tiv thaiv kev laus -. Lawv tuaj yeem hloov mus rau ntau qhov chaw nyob sab hauv tsev thiab sab nraum zoov, zam cov teeb meem ntawm xeb thiab xeb uas cov hlau hlau cov pa cua ducts tuaj yeem ua rau.

Ntev -cov txiaj ntsig kev lag luam ntev:Txawm hais tias tus nqi pib ntawm kev yuav khoom yog me ntsis siab dua li ntawm cov kab hluav taws xob ib txwm muaj, nws tuaj yeem txo qis kev siv hluav taws xob ntawm lub tshuab cua txias vim nws qhov kev ua tau zoo ntawm rwb thaiv tsev. Ua ke nrog cov txiaj ntsig zoo xws li kev teeb tsa yooj yim, kev pab cuam lub neej ntev, thiab cov nqi kho mob qis (tsis xav tau kev tshem tawm cov xeb tsis tu ncua lossis rwb thaiv tsev hloov), tus nqi sib txawv feem ntau tuaj yeem rov qab tau hauv 2-3 xyoos, thiab cov nqi mus sij hawm ntev yog qhov zoo heev.

Cov txiaj ntsig tseem ceeb ntawm kev sib raug zoo:Kev txo qis kev siv hluav taws xob ntawm cov tshuab cua txias txhais tau tias txo qis kev siv cov pob txha siv zog thiab cov pa roj carbon emissions, ua rau kev ua tiav ntawm "dual carbon" cov hom phiaj. Kev siv cov ntaub ntawv zoo ib puag ncig tuaj yeem txo cov pa phem hauv tsev, txhim kho huab cua zoo hauv tsev, thiab ua tau raws li qhov xav tau ntawm cov tsev niaj hnub no kom ntsuab, noj qab haus huv thiab lub zog-txuag nta. Lub caij no, kev teeb tsa modular txo cov khoom siv pov tseg, uas yog nyob rau hauv txoj kab nrog lub tswv yim ntawm kev txhim kho kom ruaj khov.

Customized adaptation muaj peev xwm:Txhawb kev hloov kho txoj kab uas hla (ob lub voj voog thiab cov duab plaub), qhov ntev, thiab cov txheej txheej rwb thaiv tsev tuab (20-50mm xaiv tau) ntawm cov pa cua raws li qhov yuav tsum tau ua, thiab tuaj yeem muab cov kev hloov kho tus kheej xws li hluav taws kub thiab nplaim hluav taws kub (oxygen Performance index ntau dua lossis sib npaug rau 28), thiab tshuaj tua kab mob (antibacterial npaum li cas ntau dua lossis sib npaug ntawm 9%).
