Pre-insulated HVAC Duct Vaj Huam Sib Luag

Ua tsaug rau nws cov khoom zoo thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm cov ua ntej insulated hvac duct vaj huam sib luag manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws thiab xa khoom sai rau koj.



Pre-insulated HVAC Duct Vaj Huam Sib Luag

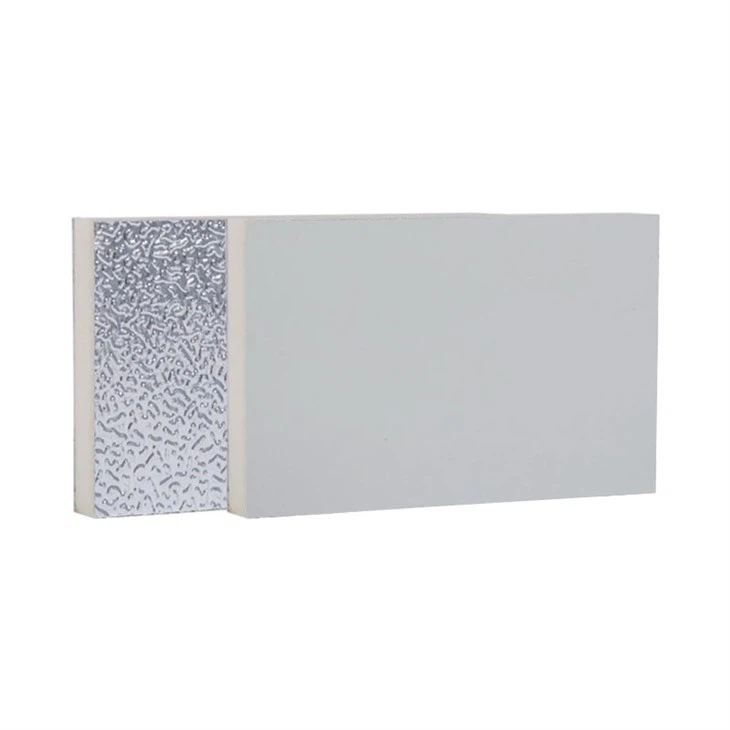

UNTDuct PIR System tsis yog tsuas yog ua raws li cov txheej txheem ua ntej-insulated aluminium, tab sis nws kuj muaj cov khoom siv, cov cuab yeej thiab kev paub tsim nyog rau kev tsim kho thiab kev teeb tsa hauv kev ua haujlwm zoo. UNTDuct Vaj Huam Sib Luag yog Sandwich vaj huam sib luag nrog cov ntawv txhuas sab nraud uas npog lub cell insulating khoom polyisocyanurate (PIR) ua npuas ncauj uas muaj density ntawm 55 kg / m³.

UNTDuct PIR pre-insulated vaj huam sib luag tuaj yeem ua tiav qhov zoo tshaj plaws ducting tuaj yeem ua tiav, raws li cov txiaj ntsig ncaj qha ntawm cov cuab yeej rwb thaiv tsev zoo ntawm PIR ua npuas ncauj. UNTDuct PIR pre-insulated vaj huam sib luag kuj muab cov huab cua sab hauv zoo, zoo sab nrauv tiav, cov khoom siv ntev, hnav thiab thauj tau yooj yim, tswj thiab tsim.

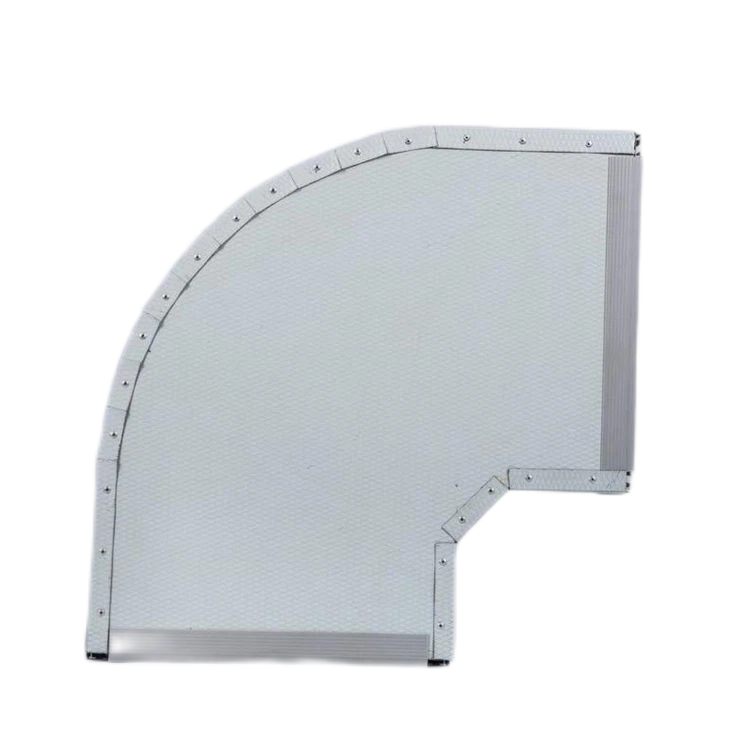

Ducting systems tsim nrog UNTDuct PIR pre-insulated panels tuaj yeem ntsia tau rau sab hauv lossis sab nrauv ntawm lub tsev, pom lossis nrog lub qab nthab cuav hauv kev siv vaj tse thiab kev lag luam.

Ib yam li UNTDuct PIR pre-insulated panels yog ib qho kev xaiv zoo tshaj plaws hauv kev lag luam xws li kev ua zaub mov, khoom siv hluav taws xob, tshuaj, tsev kho mob & chaw kho mob thiab lwm yam. Qhov twg yuav tsum tau muab cov kev pabcuam siab thiab kev nyiam huv.

Kev siv sab nraud / sab hauv:

Vaj Huam Sib Luag Qauv: Painted Hlau / PIR Ua Npuas Ncauj / Nyiaj Alu.

Ua npuas ncauj ntom: 55kg / m3

Vaj Huam Sib Luag Loj: 3950mm * 1200mm * 20mm

Alu. Ntawv nyiaj: 60 Micron (Embossed)

Painted Steel Sheet: 180 Micron (Smooth)

Qhov zoo ntawm Pre-insulated HVAC Duct Vaj Huam Sib Luag

1. High thermal rwb thaiv tsev nrog tus nqi thermal conductivity ntawm 0.022w/mk tso cai rau kev siv ntau tshaj plaws ntawm huab cua tuav lub peev xwm, nce efficiency thiab txo cov nqi khiav lag luam.

2. Lub teeb hnyav heev piv rau cov ntawv hlau ducts tso cai rau txo qhov hnyav ntawm cov qauv, txhawb cov ntsiab lus, cov nqi ua haujlwm thiab cov khoom tsim nyog rau kev teeb tsa.

3. Huab cua nruj ntawm UNTDuct PIR System yog yim npaug ntau dua li cov kav dej ib txwm muaj

4. Kev siv cov khoom siv txhuas rau qhov chaw sab hauv ntawm cov ducts ua kom muaj kev huv thiab huv, nws muaj qhov zoo nkauj zoo nkauj thiab tsim nyog rau kev lag luam khoom noj khoom haus.

5. Cov qauv sandwich (txhuas - cov khoom siv insulating - aluminium) lav tau tus cwj pwm zoo acoustic. Kev vibration thiab reverberation raug nres los ntawm cov khoom siv insulating, ua rau muaj kev nplij siab dua hauv ib puag ncig uas UNTDuct tau teeb tsa

6. Nws yog ib qho yooj yim los tsim cov ducts ntawm qhov chaw ua haujlwm nrog qhov zoo ntawm cov nqi thauj khoom.

7. UNTDuct PIR Vaj Huam Sib Luag muaj kev koom tes tsawg hauv hluav taws, tsis txhob poob thiab haus luam yeeb muaj qhov txo qis thiab muaj tshuaj lom. UNTDuct PIR Panels yog ua raws li cov cai ntawm cov kev cai thoob ntiaj teb uas txwv tsis pub tshaj.

8. Cov txheej txheej aluminium txuas nrog cov khoom siv insulating muab kev ruaj khov, rigidity thiab zoo tiv thaiv corrosion, yaig thiab deformation txawm nyob rau hauv tshwj xeeb daim ntaub ntawv.

Specification ntawm Pre-insulated HVAC Duct Vaj Huam Sib Luag

Yam khoom	Chav tsev	Specification
Txheem Vaj Huam Sib Luag Loj	mm	3950*1200*20
Alu. Ntawv Nyiaj Thickness	mm	{{0}}.06 lossis 0.08
Painted Steel Sheet	mm	0.18
Ua Npuas Ncauj	kg/m3	55
Kev Nyab Xeeb Hluav Taws Xob (BS476 Ntu 6 & 7)		Chav kawm 0
Thermal conductivity	w/m.k	0.020
Compressing zog	Mpa	0.2
Khoov zog	Mpa	2
Kev nqus dej	%	Tsawg dua los yog sib npaug rau 0.1
Dimension Hloov	%	0.3
Ua haujlwm kub	degree	-60 rau +80
Max siab nyob rau hauv duct	Pa	1500
Qhov siab tshaj plaws tso cua tshaj tawm	m/s	Tsawg dua los yog sib npaug li 15
Max Nruam khiav kub	degree	Tsawg dua los yog sib npaug li 70
Lifespan ntawm PIR Cua Duct	xyoo	>20

Ua tsaug rau nws cov khoom zoo thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm cov untduct polyisocyanurate (pir) ua npuas ncauj sandwich vaj huam sib luag rau cua sov cua txias system manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws thiab xa khoom sai rau koj.
