Ua tsaug rau nws cov khoom zoo heev thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm cov ua pir pre-insulated aluminium duct board manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws thiab xa khoom sai rau koj.
PIR Pre-insulated Aluminium Duct Board:Tom ntej no tsab xov xwmHigh -Performance HVAC Ducting
Puas yog koj tab tom nrhiav HVAC ducting tov uas sib dua, muaj zog dua, thiab muaj zog ntau dua -ntau dua li cov ntawv hlau los yog fiberglass ducts? Ntsib covPIR Pre- insulated Aluminium Duct Board- Cov khoom siv hluav taws xob hloov pauv tau tsim kho rau cov cua sov niaj hnub, qhov cua, thiab cua txias tshuab.
Nws yog dab tsi?

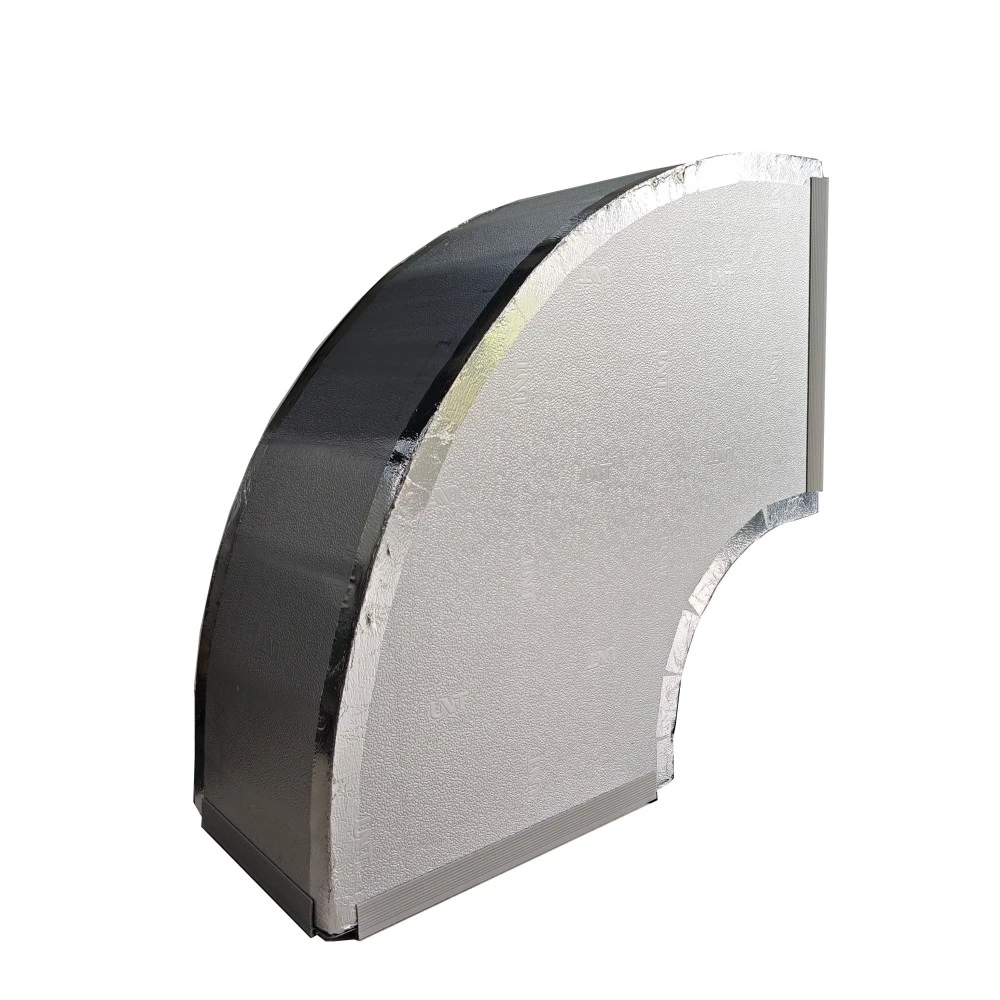

PIR (Polyisocyanurate) duct board yog ib qho nyuaj, qhaub cij -hom vaj huam sib luag. It consists of a high-density closed-cell rigid PIR foam core, permanently bonded to a high-purity aluminum foil on both sides. Qhov "sandwich" no tshem tawm qhov kev xav tau ntawm cov rwb thaiv tsev sab nraud lossis sab hauv.
Qauv:Silver Aluminium / PIR Ua Npuas Ncauj / Nyiaj Txhuas
Kev Nyab Xeeb Hluav Taws Xob:Chav Kawm 0 (BS 476 Part 6 & 7), Chav Kawm A (ASTM E84)
Thermal conductivity:0.022W/M.K
Cov txiaj ntsig tseem ceeb ntawm PIR Pre- insulated Aluminium Duct Board rau koj cov haujlwm
| Cov txiaj ntsig tseem ceeb | Vim Li Cas Nws Tseem Ceeb Rau Koj |
|---|---|
| 🔥 Superior Fire Safety | PIR ua npuas ncauj yog qhov hluav taws kub -retardant - chars, tsis drip flaming hais, thiab ua pa taws tsawg. Raws li ASTM E84 Class A / BS 476. |
| ⚡ 30% Cov Nqi Them Nqi Zog | Ultra{0}} thermal conductivity tsawg (tsawg dua lossis sib npaug rau 0.022 W/m·K). Ua-nyob rau hauv aluminium vapor barrier nres condensation & thermal poob. |
| 🪶 80% Sib zog dua hlau | Txo cov khoom siv hauv tsev. Tsawg tus nqi thauj khoom. Yooj yim nqa thiab nruab ntawm tes. |
| 🔧 50% Faster Installation | Txiav, qhab nia, thiab quav nrog cov cuab yeej siv tes yooj yim. Tsis muaj tshuab hnyav. Sib dhos nrog aluminium daim kab xev los yog sealants. |
| 🌿 Pwm-Dawb & Tsis muaj Fibers | Nthuav kaw-cell nto tsis tso cov fibers. Resistant noo noo, pwm, thiab mildew. Zoo tagnrho rau tsev kho mob & chav huv. |
| Cov khoom siv hluav taws xob tiv thaiv kev tiv thaiv corrosion | Aluminium ntsej muag tiv taus cov av noo, tshuaj lom neeg, thiab UV (thaum coated). Nws kav ntau xyoo tsis muaj degradation. |
PIR Pre-insulated Aluminium Duct Board vs. Traditional Ducts
| Nta | PIR Aluminium Yeeb Nkab | Sheet Hlau + Sab nrauv rwb thaiv tsev | Fiberglass Duct Board |
|---|---|---|---|
| Kev ua haujlwm thermal | Zoo heev | Zoo (nyob ntawm rwb thaiv tsev) | Nruab nrab |
| Kev nyab xeeb hluav taws | Zoo heev | Zoo heev | Tsis zoo (fiber shedding) |
| Qhov hnyav | Teeb heev | hnyav heev | Teeb |
| Installation ceev | ceev heev | qeeb | Nruab nrab |
| Corrosion/fungal txaus ntshai | Tsis muaj | Nruab nrab (yog tias rwb thaiv tsev ntub dej) | High (thaum moist) |
| Cua nkag | Tsawg heev (pob txha taped) | Mob ntshav qab zib (ntau ntau yam) | Tsawg |
| Lub neej nqi | Tsawg | Siab | Nruab nrab |
Vim li cas thiaj xaiv Peb PIR Duct Board?
✅ Certified Quality:Txhua lub rooj tsavxwm raug sim rau hluav taws kub, thermal, thiab kev ua haujlwm ntawm lub tshuab ua haujlwm los ntawm thib peb -labs.
✅ Custom Size:Peb muab cov ntawv txheem 4'x8', lossis txiav - mus rau - qhov loj me rau cov haujlwm loj.
✅ Kev pab txhawb nqa:Free layout design, fabrication training, thiab ntawm -site qhia.
✅ Eco-Tus phooj ywg:PIR ua npuas ncauj tsis muaj CFCs / HCFCs, thiab lub rooj tsavxwm yog 100% rov ua dua thaum kawg ntawm lub neej.
UNTDuct PIR System
| Khoom | Tus nqi |
|---|---|
| Cov khoom siv tseem ceeb | Polyisocyanurate (PIR) rigid ua npuas ncauj |
| Kev ntsib | Embossed / Aluminium ntawv nyiaj (60 lossis 80 microns) |
| Ceev (core) | 45-55 kg / m³ |
| Thermal conductivity | Tsawg dua lossis sib npaug rau 0.022 W / (m·K) ntawm 10 degree |
| Compressive zog | Ntau tshaj lossis sib npaug li 150 kPa |
| Ua haujlwm kub | -50℃rau +120 degree |
| Qhov ntsuas hluav taws kub | Chav Kawm A lossis B-s1, d0 (nws txawv ntawm tus qauv) |
| Thickness xaiv | 10mm / 20mm / 25mm / 30mm / 40mm |
| Dav | 1200 hli |
| Ntev | los ntawm 2000 mus rau 4000 mm |
Cim npe nrov: pir pre- insulated aluminium duct board, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized
