Ua tsaug rau nws cov khoom zoo heev thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm cov ua pir aluminium duct ua npuas ncauj vaj huam sib luag manufacturers thiab lwm tus neeg nyob hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws rau koj thiab xa khoom sai.

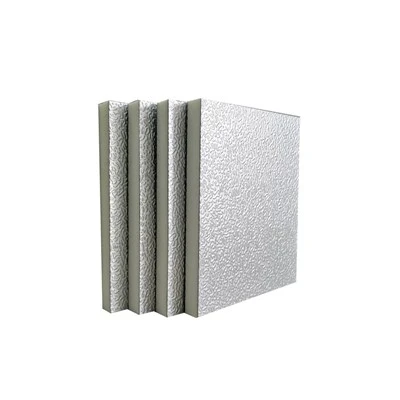

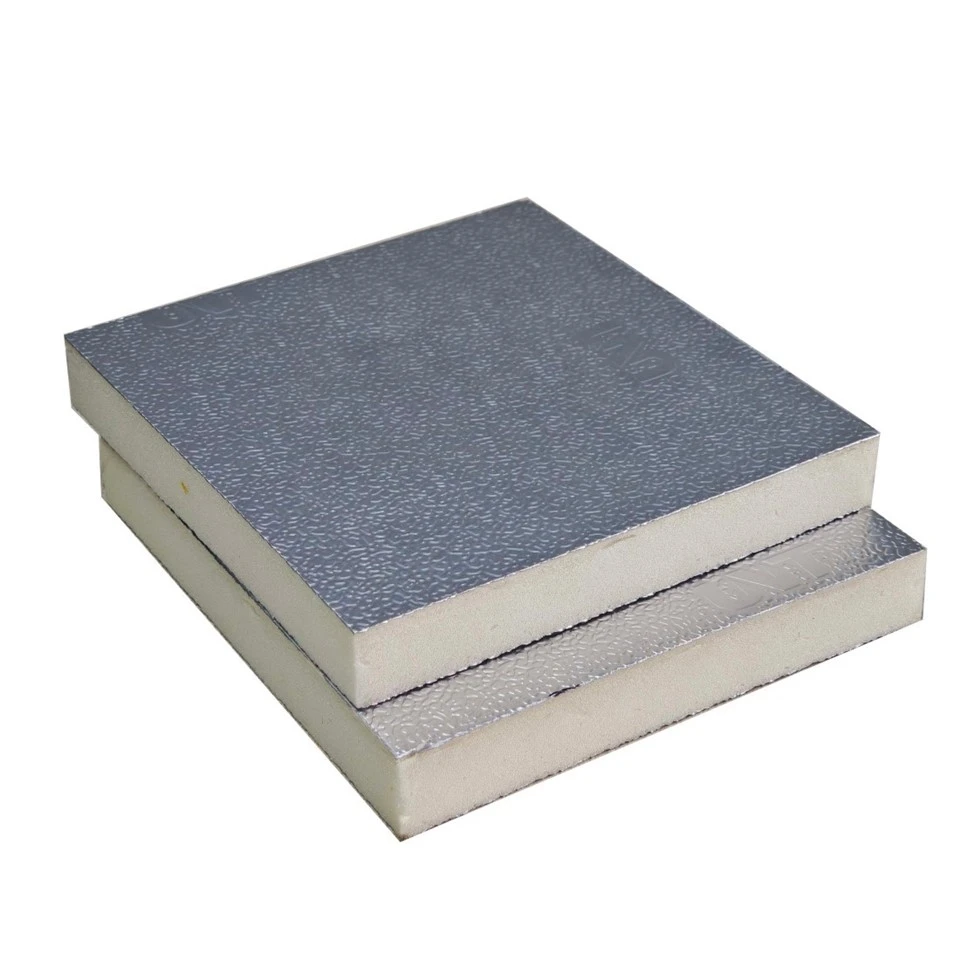

PIR Aluminium Duct Ua npuas ncauj vaj huam sib luag
PIR Aluminium Duct Foam Vaj Huam Sib Luag nta cov thermal rwb thaiv tsev, hluav taws kub tsis kam thiab lub teeb yuag. Cladded nrog aluminium ntawv ci, nws boasts ruaj khov qauv, tsis tshua muaj cua sov poob, yooj yim installation thiab ntev kev pab cuam lub neej, lug siv nyob rau hauv HVAC qhov cua duct systems.
Qauv:Silver Aluminium / PIR Ua Npuas Ncauj / Nyiaj Txhuas
Loj:3950 * 1200 * 20mm
Ua npuas ncauj ntom ntom:50kg / m3
Aluminium Thickness:0.06mm los yog 0.08mm
Aluminium Xim:Nyiaj
Ntim:10 daim / pob
Loading peev:710 nplooj / 40'HQ (packed nrog hnab yas)
660 nplooj / 40'HQ (packed nrog cardboard thawv)
Thermal rwb thaiv tsev thiab Thaum tshav kub kub Preservation Performance ntawm PIR Aluminium Duct Foam Vaj Huam Sib Luag
Qhov tseem ceeb ntawm PIR yog nyob rau hauv nws cov thermal conductivity tsawg. Qhov ntsuas thermal conductivity ntawm chav tsev kub yog li ntawm 0.018 txog 0.022 W / (m·K), uas zoo dua li ntawm PU thiab XPS rwb thaiv tsev boards.
Nyob rau tib lub thickness ntawm 25 hli: Lub thermal kuj ntawm PIR board tuaj yeem ncav cuag 0.96 (㎡·K) / W. Nyob rau hauv cov xwm txheej ntawm lub caij ntuj sov cua kub qhov sib txawv ntawm 12 degree, qhov kub poob raws 100-meter duct tsuas yog 0.8 mus rau 1.2 degree, thiab qhov txias poob yog tswj tsis pub dhau 3%.
Piv nrog rau cov tsoos hlau ntawv ducts nrog sab nraud rwb thaiv tsev paj rwb, tag nrho cov rwb thaiv tsev efficiency ntawm lub rooj tsavxwm no tau nce ntau tshaj 28%. Lub sijhawm ua haujlwm ntev - tuaj yeem txo qhov kev siv lub zog ntawm cov tshuab cua txias.
Sab hauv kaw-cov qauv ntawm tes tso nyiaj rau ntau dua lossis sib npaug li 95%. Lub micro pores raug kaw thiab tsis txhob xau dej lossis huab cua pauv, tiv thaiv cov teeb meem tshwm sim ntawm cov pa xau thiab cov dej condensation los ntawm cov qauv tsim.
Hluav taws kub tsis kam thiab nplaim taws retardancy kev nyab xeeb kev ua tau zoo ntawm PIR Aluminium Duct Foam Vaj Huam Sib Luag
Cov khoom siv nruj me ntsis ua raws li European EN13501 tus qauv tiv thaiv hluav taws. Cov khoom tiav lawm qhov hluav taws kub tsis kam tuaj yeem ncav cuag B1 qib, uas yog cov khoom tsis yog -flammable. Cov pa luam yeeb toxicity theem yog s1, thiab drip theem yog d0.
Cov txiaj ntsig kev sib xyaw ua ke: Thaum raug cov nplaim taws, nws tsis kis mus tas li, tsis muaj cov dej ntws tawm, thiab cov pa tawm ntawm cov pa taws hluav taws xob tsawg heev; Qhov ntsuas kub tseem ceeb rau kev tiv thaiv kub kub hauv qhov hluav taws kub yog mus txog 180 degree, thiab luv luv - lub sij hawm raug rau siab - cua kub kub yuav tsis ua rau deformation lossis carbonization.
Nws tuaj yeem siv rau hauv cov tsev lag luam, cov tsev ua haujlwm, cov chaw nres tsheb hauv av, thiab cov tsheb ciav hlau thauj mus los, ua tau raws li cov kev cai nruj rau kev lees txais hluav taws hauv cov tsev pej xeem.
Tightness, muaj zog, suab nrov txo ntawm PIR Aluminium Duct Ua npuas ncauj vaj huam sib luag
Lub ob -sided aluminium ntawv ci yog seamlessly bonded. Tom qab cov vaj huam sib luag tau koom ua ke, qhov tseeb ntsuas huab cua ntws tawm tsawg dua lossis sib npaug li 1.5%, deb tshaj li lub teb chaws tus qauv ntawm 5% rau kev tsim nyog cov pa taws.
Kev nqus dej ntawm cov panels yog tsawg dua lossis sib npaug li 1.8%. Hauv cov chav hauv av ntub dej los yog siab - chav ua noj thiab chav ua noj hauv chav dej, lawv yuav tsis nqus dej thiab nthuav dav, ua kom mos thiab ua haujlwm tsis zoo.
Cov txheej txheem dej vapor cais tawm tuaj yeem tiv thaiv kev sib koom ua ke thiab condensation ntawm huab cua txias thiab kub. Thaum lub sij hawm tag nrho lub xyoo ntawm kev siv, cov phab ntsa sab nrauv ntawm cov pa cua yuav tsis muaj dej los yog pwm loj hlob, tsis txhob muaj teeb meem xws li qab nthab to thiab phab ntsa ntub dej.
Qhov ntsuas compressive zog ** yog ntau dua los yog sib npaug rau 220 kPa **, thiab nws tsis deform los yog dab dej nyob rau hauv ib txwm stacking, hoisting, los yog static siab loads los ntawm pipelines.
