Ua tsaug rau nws cov khoom zoo thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm cov ua pir-alu duct foam panels tuam ntxhab thiab cov muag khoom hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws thiab xa khoom sai rau koj.

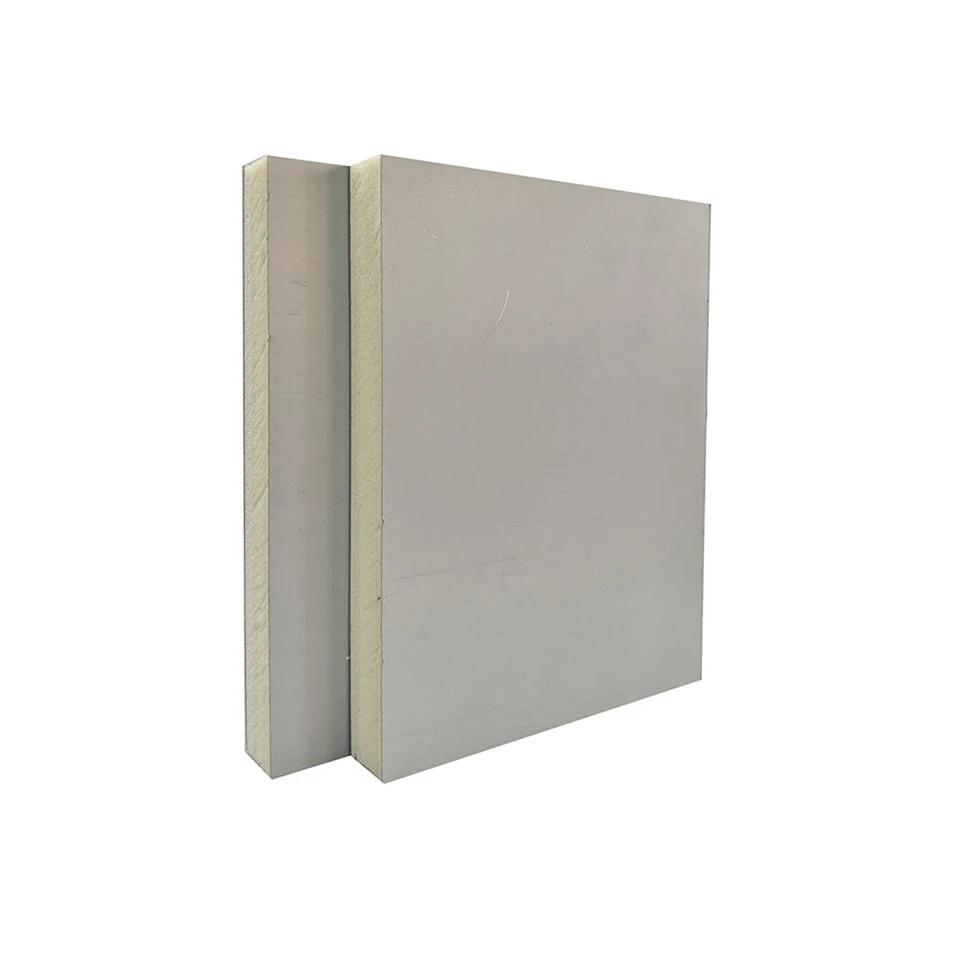

PIR-ALU DUCT FOAM PANELS

PIR-ALU DUCT FOAM PANELS yog siab-kev ua tau zoo ntawm cov hluav taws xob rwb thaiv tsev tshwj xeeb tsim rau HVAC cov kav dej.
Lawv muaj ib tug nruj PIR ua npuas ncauj core laminated nrog txhuas ntawv ci ntawm ob sab, xa zoo thermal stability, tsis tshua muaj thermal conductivity, thiab zoo heev hluav taws kub.
Cov vaj huam sib luag no yog lub teeb yuag, yooj yim rau kev txiav thiab nruab, txo qis zog poob thiab condensation.
Nrog rau cov neeg kho tshuab muaj zog thiab tiv thaiv corrosion, lawv tau siv dav hauv cov tsev lag luam, kev cob qhia kev lag luam, chav huv huv thiab cov cua txias hauv nruab nrab, muab sijhawm ntev -, txhim khu kev qha thermal rwb thaiv tsev thiab cua duct tiv thaiv.

Qauv:Silver Aluminium / PIR Ua Npuas Ncauj / Nyiaj Txhuas
Loj:3950 * 1200 * 20mm
Ua npuas ncauj ntom ntom:50-55kg / m3
Aluminium Thickness:0.06mm los yog 0.08mm
Aluminium Xim:Nyiaj
Ntim:10 daim / pob
Loading peev:710 nplooj / 40'HQ (packed nrog hnab yas)
660 nplooj / 40'HQ (packed nrog cardboard thawv)

cov khoom muaj pes tsawg leeg ntawm PIR-ALU DUCT FOAM PANELS

Cov khoom no tsis yog ib qho khoom siv nkaus xwb tab sis cov khoom siv sib xyaw ua ke muaj xws li PIR (polyisocyanurate) ua npuas ncauj cov khoom siv thiab aluminium foil txheej txheej. PIR nws tus kheej muaj cov rwb thaiv tsev zoo heev, nplaim taws retardancy, thiab qhov ruaj khov, uas tuaj yeem txo qhov kub ntawm cov kav dej; aluminium foil nto txheej yog lub luag haujlwm tiv thaiv kev nkag mus ntawm noo noo, txhim kho lub zog saum npoo, thiab ua kom pom kev tshav ntuj.

Cov qauv sib xyaw no zam qhov tsis xws ntawm cov npuas dej ntshiab, xws li fragility thiab huab cua tsis zoo, thiab tseem daws cov teeb meem ntawm kev rwb thaiv tsev tsis txaus ntawm cov hlau ntshiab thiab yooj yim condensation. Lub interface sib txuas lub zog ntawm cov ntaub ntawv ncaj qha txiav txim siab qhov ntev ntawm cov khoom. Kev ua haujlwm zoo tuaj yeem tiv thaiv delamination thiab bulging, thiab txuas ntxiv lub neej kev pabcuam ntawm cov kav dej.

Tus nqi qauv thiab kev ua lag luam hloov tus nqi ntawm PIR-ALU DUCT FOAM PANELS

Piv nrog rau cov tsoos galvanized hlau ntawv duct + sab nraud rwb thaiv tsev tov, cov khoom no yog ib tug integrated tiav phaj. Txawm hais tias chav tsev tus nqi siab dua me ntsis, tus nqi tag nrho yog qhov muaj txiaj ntsig zoo dua: nws tshem tawm qhov xav tau ntawm kev tsim cov rwb thaiv tsev thib ob, kev ua haujlwm, cov khoom siv pabcuam, thiab cov nqi tu tom ntej.

Nyob rau tib lub sijhawm, nws tuaj yeem hloov qee cov khoom siv phenolic thiab XPS duct, thiab muaj kev sib tw ntau dua ntawm cov nplaim hluav taws kub, qhov kub thiab txias, thiab ntev - lub sij hawm ruaj khov.

Raws li cov qauv ntawm cov tsev prefabricated, cov yam ntxwv ntawm cov txheej txheem prefabrication thiab ntawm - qhov chaw sib dhos sai ua rau nws tsim nyog rau kev tsim kho niaj hnub. Qhov chaw hloov pauv kev lag luam los tsis yog los ntawm qhov zoo ntawm kev ua tau zoo, tab sis kuj los ntawm kev ua tau zoo tau coj los ntawm kev hloov kho ntawm cov qauv engineering.
