Ua tsaug rau nws cov khoom zoo thiab cov kev pabcuam zoo, UNT Duct yog ib qho ntawm cov ua ntej -insulated phenolic hvac ductwork tuam ntxhab thiab cov muag khoom hauv Suav teb. Txais tos mus yuav cov khoom zoo thiab customized los ntawm peb lub hoobkas. Peb yuav muab kev pabcuam zoo tshaj plaws thiab xa khoom sai rau koj.

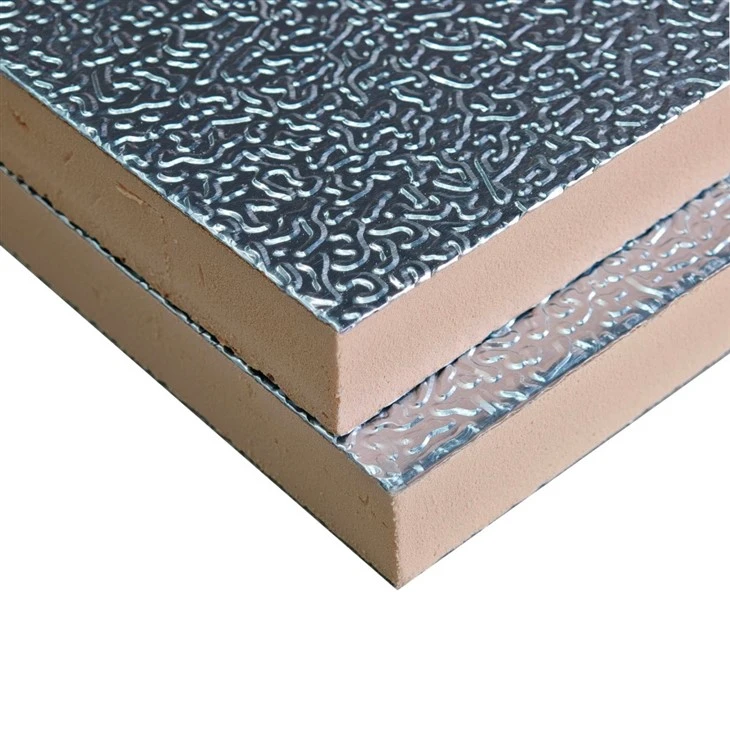

Pre-insulated Phenolic HVAC Ductwork

Ua ntej-insulated phenolic ductwork sawv cev rau lwm txoj hauv kev niaj hnub rau cov ntawv hlau ducts, qhov twg cov qauv duct nws tus kheej yog tsim los ntawm nruj phenolic ua npuas ncauj panels nrog lub Hoobkas -bonded aluminium faces, integrating rwb thaiv tsev thiab cua conveyance hauv ib yam khoom.

Qauv:Silver Aluminium / Phenolic Ua Npuas Ncauj / Nyiaj Txhuas
Loj:3950 * 1200 * 20mm
Ua npuas ncauj ntom ntom:50kg / m3
Aluminium Thickness:0.06mm ib
Aluminium Xim:Nyiaj
Ntim:10 daim / pob
Loading peev:660 daim / 40'HQ (packed nrog cardboard lub thawv)

Qhov zoo ntawm Pre-insulated Phenolic HVAC Ductwork

Ua ntej- insulated phenolic duct systems muaj ntau yam kev pab cuam tshaj cov pa hlau ducts, uas yog fabricated rau ntawm -site thiab ces insulated sab nraud los yog sab hauv.

Installation efficiency:

Cov tshuab no yogtseem ceeb dua(tshaj li 70% sib zog dua li cov ntawv hlau), tso cai rau cov ntu prefabricated ntev (txog 13 ko taw) thiab kev teeb tsa sai dua - txog li peb zaug sai dua li cov txheej txheem ib txwm muaj. Qhov no - kauj ruam kev teeb tsa ua ke ua ke ductwork thiab rwb thaiv tsev, txo cov nqi zog thiab tuav cov nqi.

Lub zog ua haujlwm:

Lub kaw -cov qauv ntawm tes muab cov rwb thaiv tsev zoo heev, uas pab txo qis zog thiab tuaj yeem txo qis cov pa roj carbon emissions hauv lub tsev. Lub du aluminium sab hauv nto thiab kaw cov pob qij txha ua rauqis cua nkag, ntsib cov chav kawm nruj xws li SMACNA Chav Kawm C lossis D.

Sustainability thiab huab cua nyob sab hauv tsev:

Cov fiber ntau -dawb phenolic core thiab txhuas lub ntsej muag tiv thaiv kev rwb thaiv tsev fibers los ntawm kev nkag mus rau hauv cov huab cua, txhim kho huab cua hauv tsev thiab tiv thaiv pwm kev loj hlob. Ntau yam khoom tsim nrogzero ozone depletion peev xwm (ODP)thiab lub ntiaj teb no muaj peev xwm ua kom muaj cua sov tsawg (GWP) tshuab cov neeg ua haujlwm, pab txhawb rau cov ntawv pov thawj ntsuab xws li BREEAM thiab LEED.

Kev txuag chaw:

Lub ductwork tuaj yeem ntsia tau yaug nrog lub qab nthab, txuag qhov chaw muaj txiaj ntsig zoo piv rau cov hlau ducts sab nraud.
